TOTAL TECHNOCRACY

MEIDEN

up to 94 Arms (13.56 MHz)

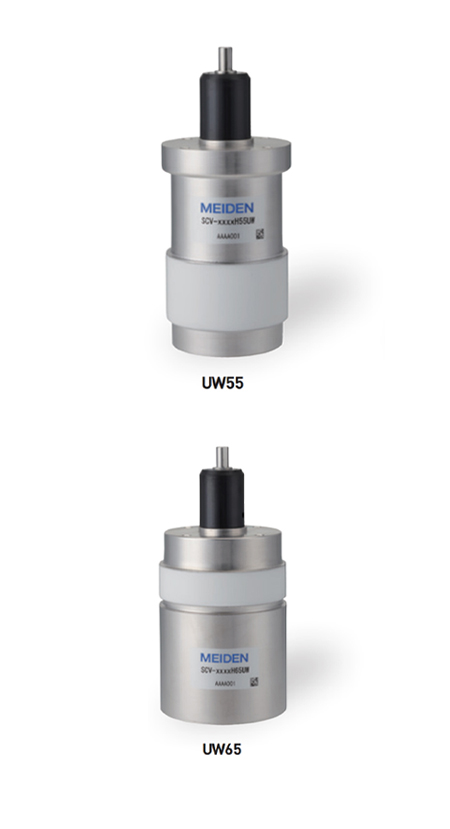

UW Series

Designed for low-power applications

up to 94 Arms (13.56 MHz)

Features
  • Low-loss / high-strength bellows
    • Copper-coated stainless steel increases current-handling capability.
  • Wide tuning range
    • Capacitance from 3 ㎊ to 2,000 ㎊
  • High purity alumina ceramics
    • Low-loss ceramics (UWA55 type)
  • High durability screw actuator technology
    • Diamond-like carbon (DLC) coating extends life and reduces friction
  • Ball screw actuators
    • Meiden has adopted ball screws for variable capacitors to overcome overload conditions such as high speed / high acceleration reverse matching, same range continuous operation, micro-motion and hunting oscillation. They provide vastly superior life expectancy, exhibiting near-zero friction for high-speed and high acceleration / deceleration functions. The UW series is available with small ball screw profiles to meet size constraints and extend life.

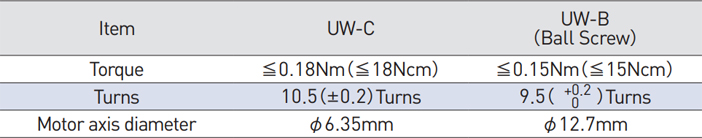

Motor Specifications
Motor Specifications
이미지 자세히보기

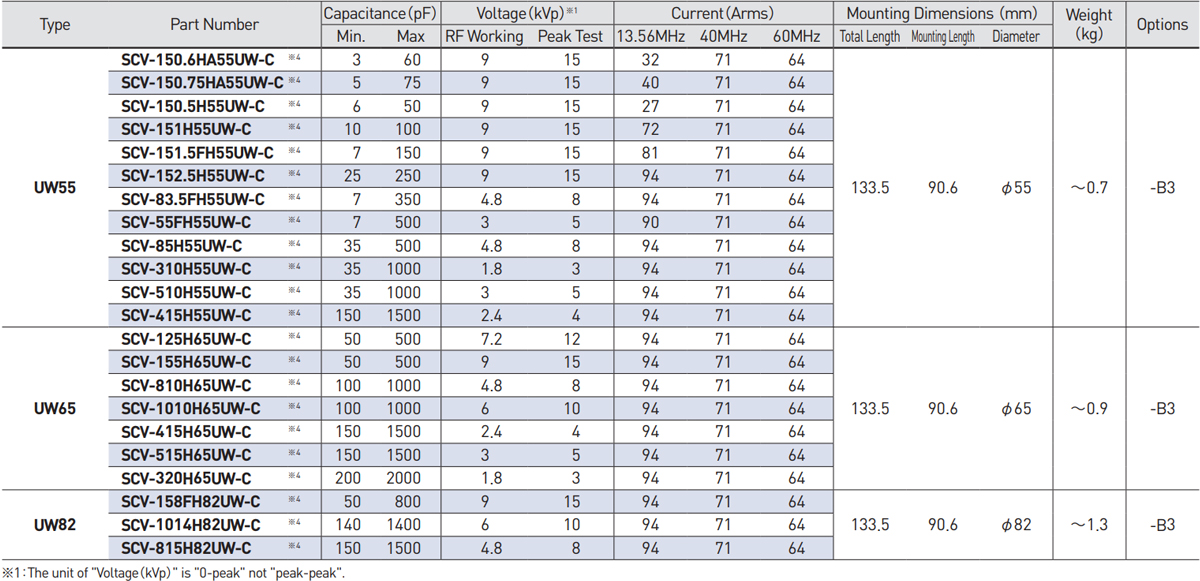

Type

up to 94 Arms (13.56 MHz) Type
